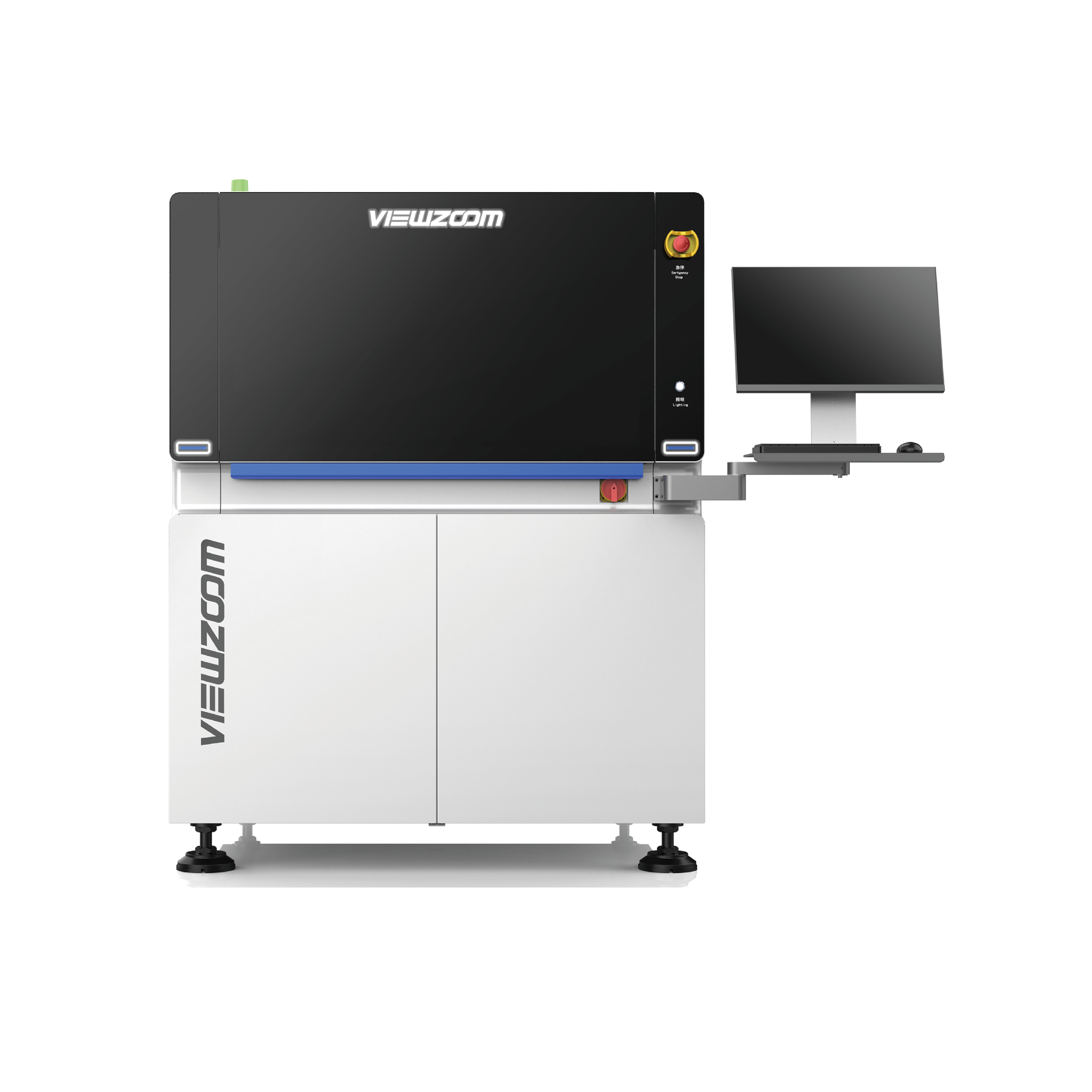

Viewzoom Venus Series

Advanced 3D automated optical inspection system for accurate and reliable SMT quality control
2D + 3D Inspection Technology combining high-resolution imaging, advanced algorithms and AI for comprehensive defect detection
High-performance 3D Inspection with 7 μm and 12 μm imaging resolution for precise component and solder inspection
Extended component inspection range supporting components up to 35 mm in height
AI-powered programming for fast inspection setup and model changeover in as little as 5 minutes
Precision inspection modes with fast mode and accurate mode to balance inspection speed and measurement detail
PCB warpage compensation with integrated hardware and software solutions for stable and consistent inspection accuracy
Optional 4-D inspection with four side-view cameras for enhanced inspection of component sidewalls, QFN solder joints and other difficult-to-detect defects
High equipment consistency with advanced calibration and standardized inspection functions for reliable performance across production lines
Single lane model: Venus 510 / Venus 810
Dual lane model: Venus 510D / Venus 810D
Large Size model: Venus 1200 / Venus 1500 / Venus 2000

Camera Performance (Venus 510/ 810)	Standard: 12MP@12µm, FOV:48.9 x 36.7 mm, 450ms/FOV
Camera Performance (Venus 510D / 810D / 1200 / 1500 / 2000D)	Standard: 12MP@15µm, FOV: 60.8 x 45.6 mm, 450ms/FOV
Number of 3D Projector	Standard: 4 ; Option: 8
Light Source	RGB surrounding light + coaxial light + white light
Side Camera	20M x 4 (Optional)
Max. PCB Bending Compensation	±4 MM
Min. Component Size	Metric 0603 (Standard12µm or 15µm); Metric 0201 (Option 7µm)
Inspection Height	up to 35mm
