◆ JTU Conformal Coating Solution

Home/◆ JTU Conformal Coating Solution





JTU offers a one-stop solution for selective conformal coating with:





The One-Man-Operation (OMO) Concept with pallet return conveyor reduces manpower, cost & increases productivity & product quality consistency. The modular concept offers highly flexible configuration possibilities and expandability.

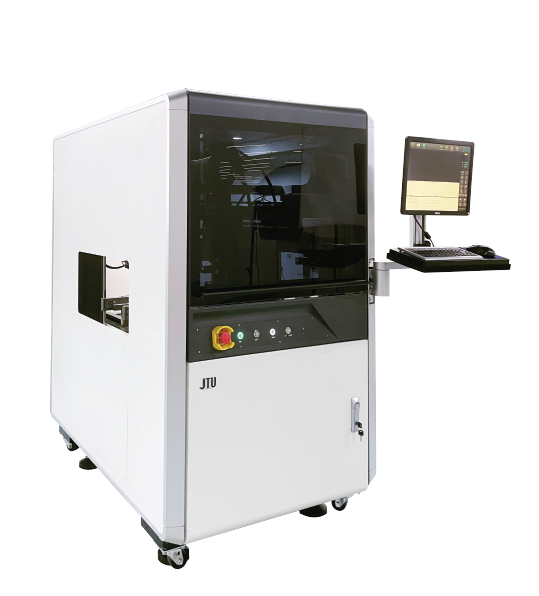

C Series Selective Coating Machines

C3

• FIND OUT MORE •

C5

• FIND OUT MORE •

C7

• FIND OUT MORE •

C6 (Film Coater)

• FIND OUT MORE •

Standard specifications

General
  • Type of drives
 Closed loop servo motor
  • X, Y travelling speed
 1 - 800 mm/s
  • Practical working speed
 10- 200 mm/s
  • X, Y repeatability
 ± 25 microns
  • Effective coating area: L x W
 460 x 460 mm (With T&C applied)
  • Z-axis movement
 100 mm
  • Com. port
 SMEMA 4 pins
Conveyor system
  • Conveyor type
 Stainless steel
  • Board clearance
 Top: 100 mm; bottom: 100 mm
  • Edge clearance
 5 mm
  • Conveyor height
 900 ± 20 mm
  • Conveyor speed
 Max. 750 mm/s (Stepper motor control)
  • Conveyor direction
 Left to right (Option: Right to left)
  • Conveyor width adjustment
 50 - 460 mm (Auto software control)
Utilities
  • Power supply
 230 V AC, 50 Hz
  • Total power
 2.5 kW
  • Exhaust flow rate
 150 mm diameter ducting, min. 5 m3/min
  • Compressed air requirement
 Min. 6 bar, 400 L/min

* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.



Optional Features


CCD vision camera
  • For fiducial check & programme teaching
Barcode/2D code scanning
  • For automatic programme switching function
3-gallon material tank
  • For larger productivity
  • Standard material tank: 1 gallon
Pallet return conveyor (Underneath)
  • For OMO concept
  • Reduce manpower
  • Reduce the number of pallets needed
Needle calibration station (PD-01)
  • Increase the accuracy & precision
Double indexing
  • For long boards up to 600 mm
  • Machine total length will be extended by 100 mm
MES customization (i4.0)
  • Customize action to link up with customer's MES

* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.

jCure+ Series Curing Ovens

jCURE+ IR Oven

• FIND OUT MORE •

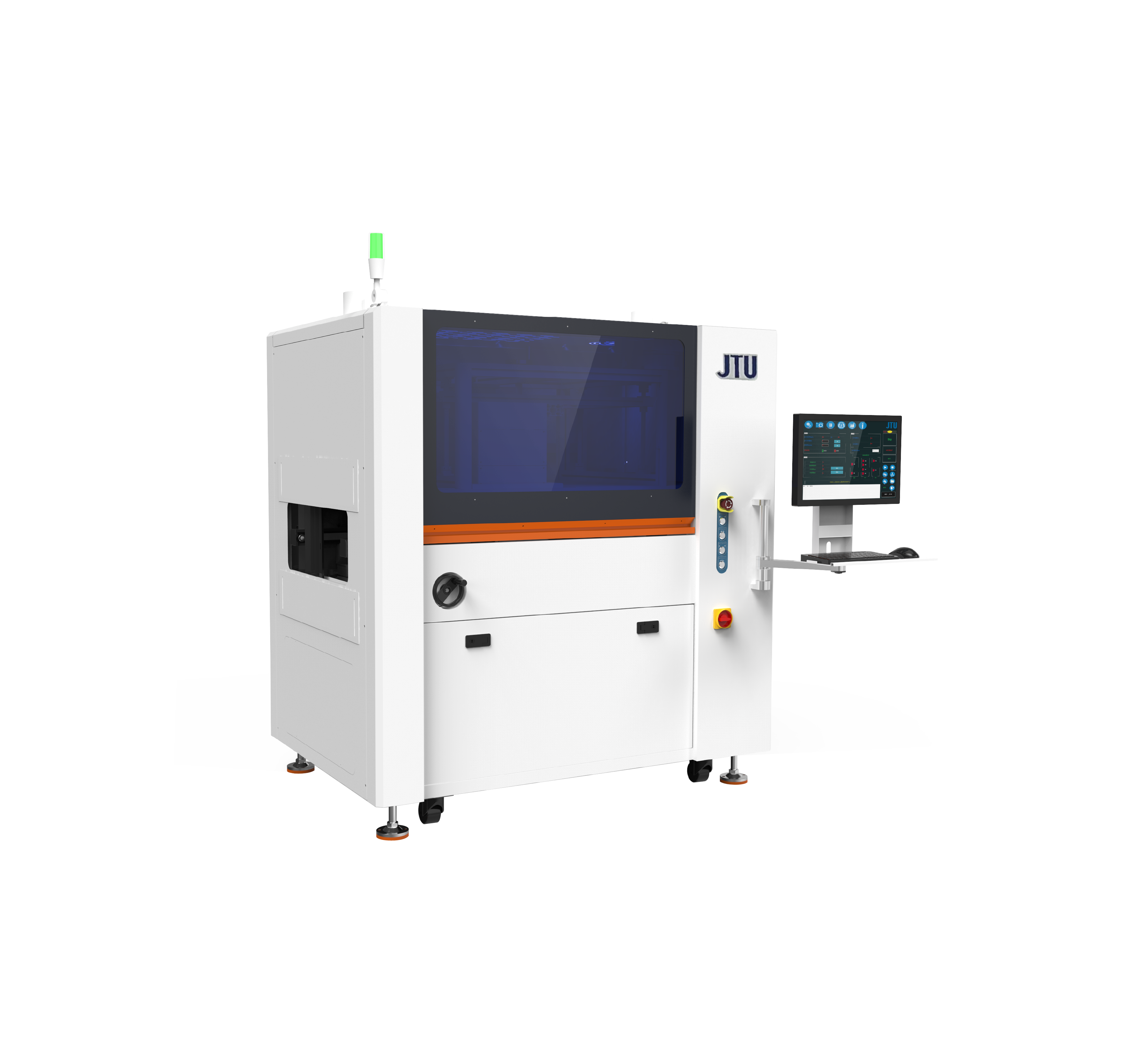

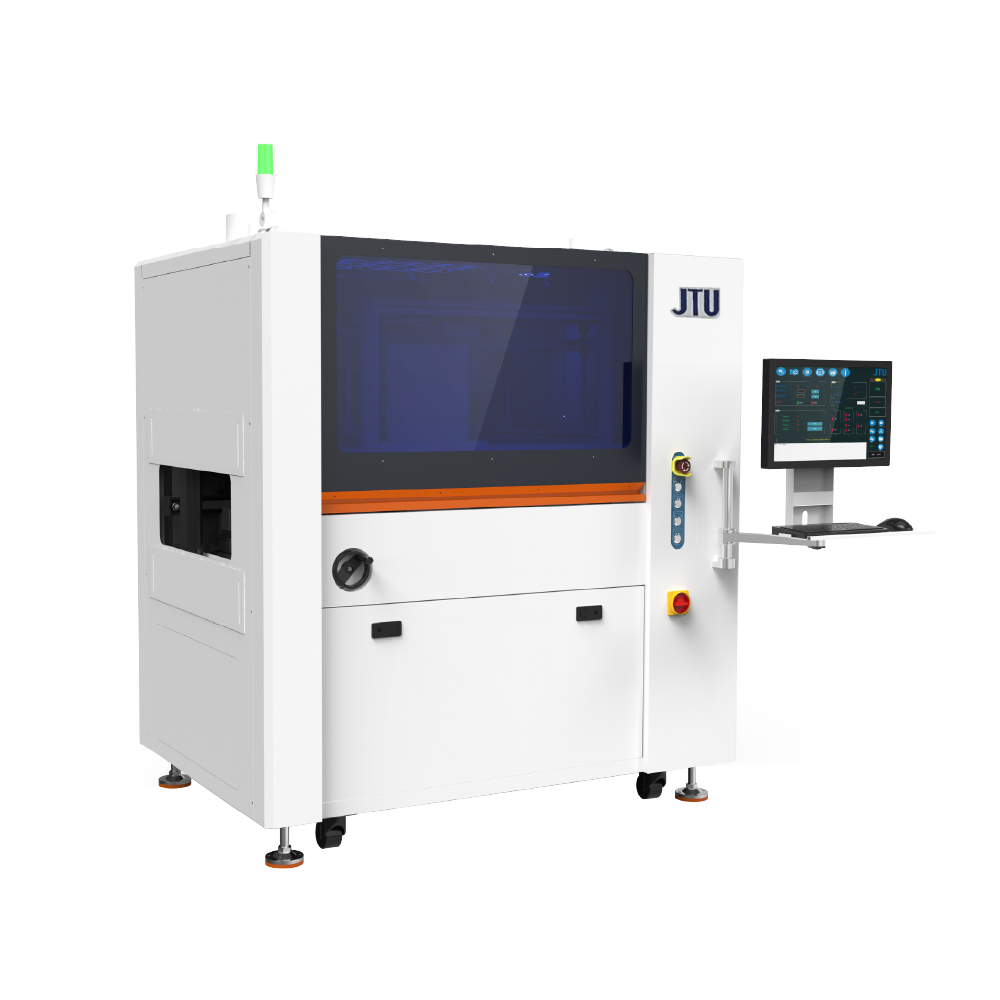

jCURE-2UV+ UV Oven

• FIND OUT MORE •

Board Handling Machines

ADJ-460
Automatic Link Conveyor

• FIND OUT MORE •

ADJ-460UV
Visual Inspection Conveyor

• FIND OUT MORE •

RJ-460
Automatic NG PCB Reject Conveyor

• FIND OUT MORE •

SJ-460
Automatic Up/Down Lifter

• FIND OUT MORE •

UL-460W
Automatic Flip Conveyor

• FIND OUT MORE •

HC-XL71C
Automatic Buffer Stocker

• FIND OUT MORE •

LD-460W
Automatic Magazine Loader

• FIND OUT MORE •

ULD-460W
Automatic Magazine Unloader

• FIND OUT MORE •
