◆ JTU Automatic Tape Splicer





The versatile ATS Series Automatic Tape Splicer maximizes utilization, productivity, efficiency & quality of splicing.



The slow, tedious, and inconsistent traditional manual tape splicing can be replaced by the automated splicing which is:



 ► Simple & easy (<10 minute learning, easy & reliable splicing)

► Smart (Has patented vision algorithm for precise automatic empty-pocket detection and pitch adjustment)

► Flexible (Rechargeable & mobile - One splicer for multiple SMT lines)





ATS Series Automatic Tape Splicer









ATS Series Automatic Tape Splicing Machine
eliminates the need of operator to replace used tape rolls on a running line, improve safety and efficiency, while making your production line a step further towards automation.



  •  Easy & reliable splicing
  •  One-click auto width adjustment (8 / 12 / 16 / 24 mm)
  •  Error proofing system by barcode scanning
  •  Reduced downtime, higher output



ATS Series ensures consistent and high splicing quality, providing non-stop refueling for your production!

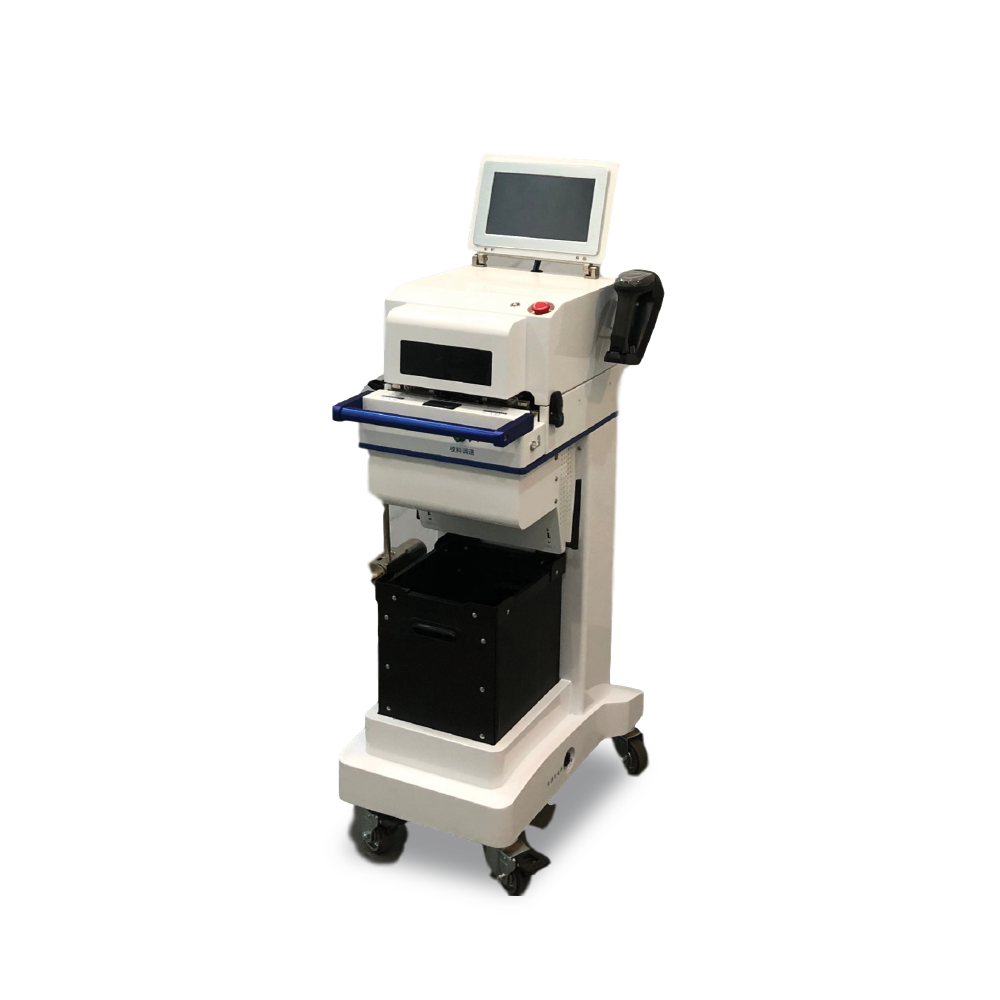

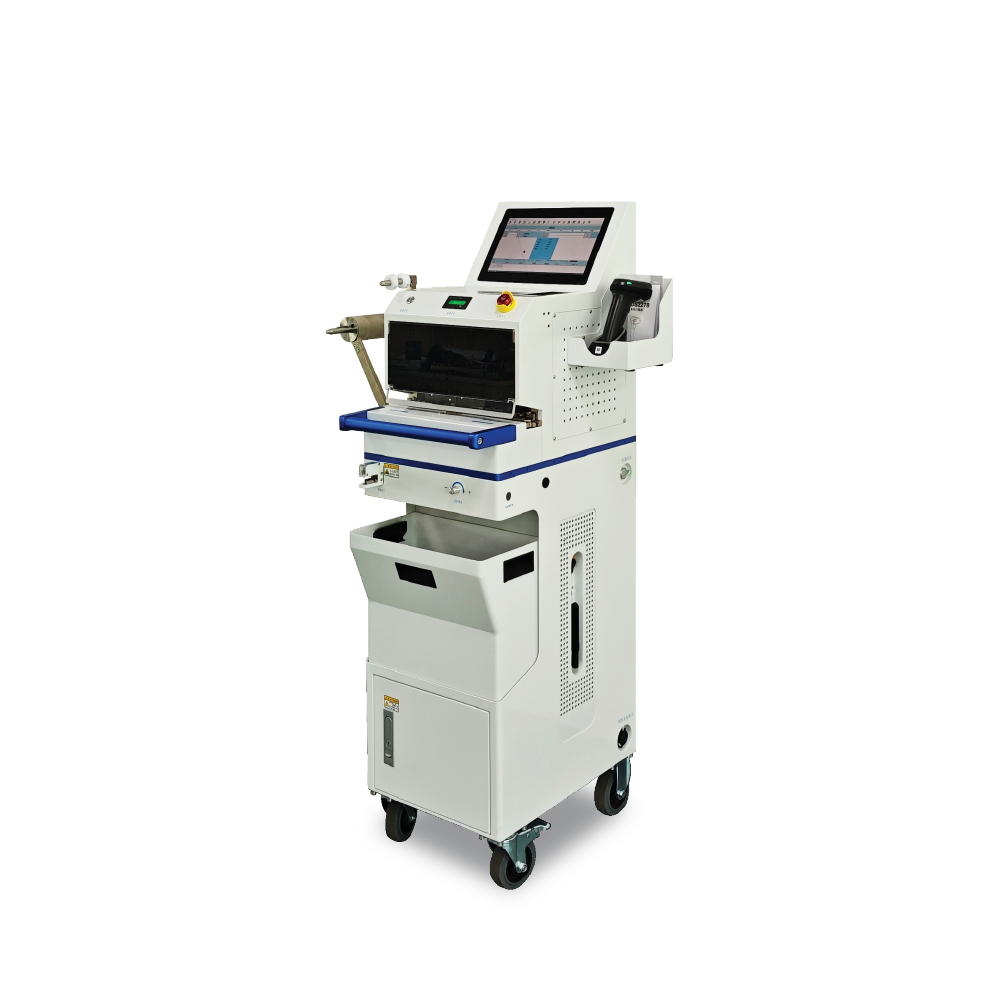

ATS SERIES MODEL

STANDARD SPECIFICATIONS


General
  • Tape alignment accuracy
± 0.08 mm
  • Feeder passthrough success rate
≥ 98%
  • Operation system
Industrial PC with touch screen & Windows 10 OS
Vision System
  • Camera
1.3MP CCD camera x 2
  • Light source
LED white lights
Utilities
  • Power source
Rechargeable battery
  • Charging power supply
AC220V ± 10%, 50 Hz

* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.

Optional Features


Customised MES software
  • To link up barcode system with customer's MES system for automatic parts verification

* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.
