Sinhovo

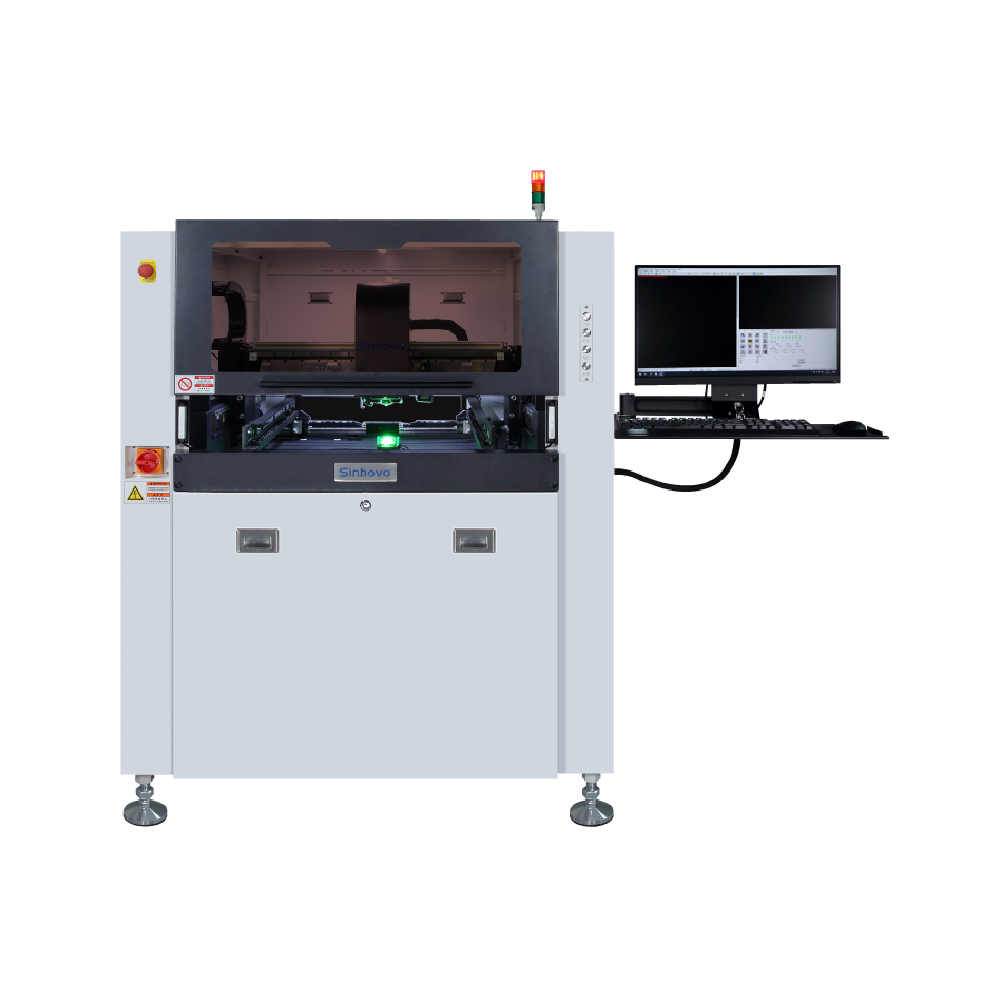

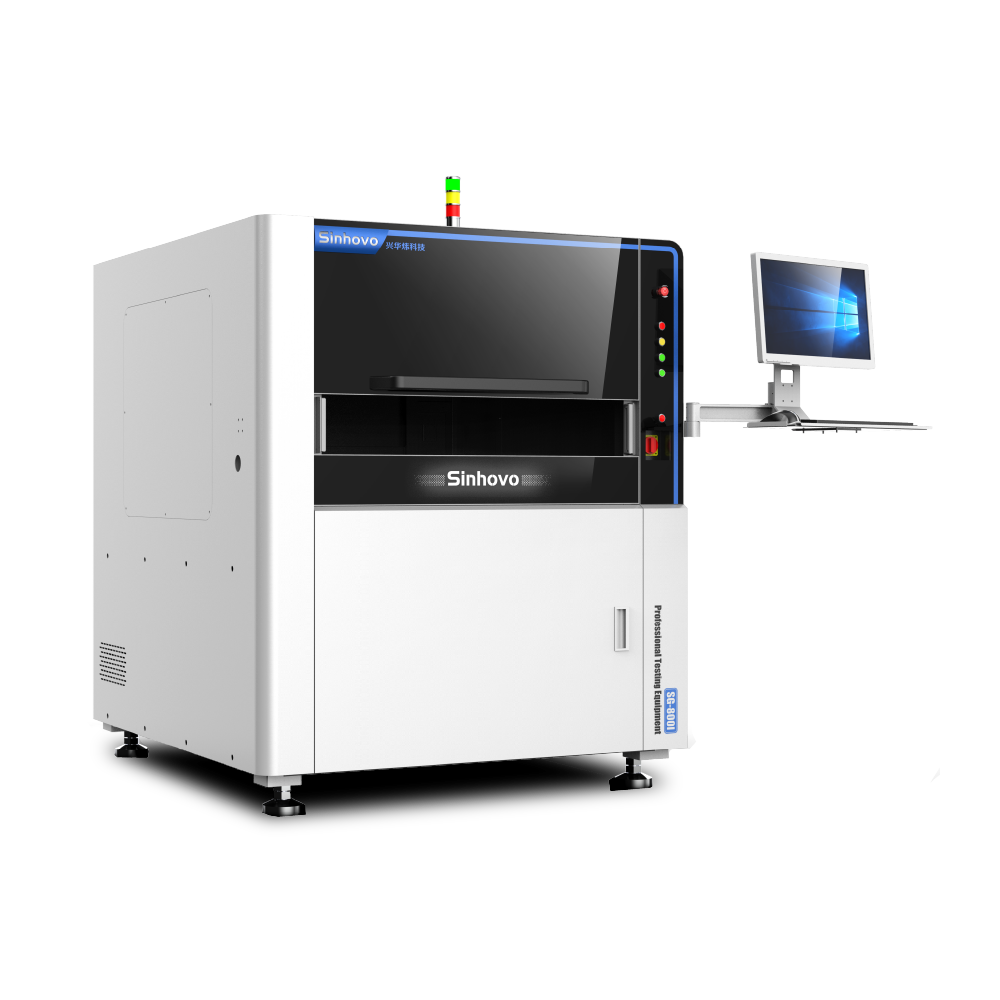

SG800L
- Automatic Stencil Inspection Machine
- Automatic stencil hole detection, minimum 0.01mm, up to 2 million
- Automatic tension test upload
- Automatic stencil thickness inspection
- Automatic frame deformation inspection
- Automatic scraper inspection
- Two dimensional meausrement function
- SPC report and MES upload
- Automatic and offline programming software, one click programming
- PCB, GERBER, CAD physical and file comparison and inspection function
- Intelligent stencil management system
| Dimension (L*W*H) | 1,310 x 1,500 x 1,615 mm |
| Weight | Approx. 1,200 kg |
| Maximum stencil frame size | 1,200 x 750 x 50 mm |
| Maximum effective inspection area | 610 x 680 mm |
| Stencil placement method | Automatic width adjustment and clamping |
| Inspection items | Position, size, quantity, foreign object, tension, burr, excessive aperture |
| Inspection speed | 0.7 - 1.2 s/FOV |
| Dimension measurement accuracy | ± 4.6 - 6.9 μm (One pixel), GR&R < 5% |
| Tension check accuracy | ± 7 μm, GR&R < 5% |
| Minumum detection pitch | 40 μm (by 4.6 μm) / 80μm (by 6.9μm) |
| Maximum quantity of aperture opening | 0.5 million |
