GKG

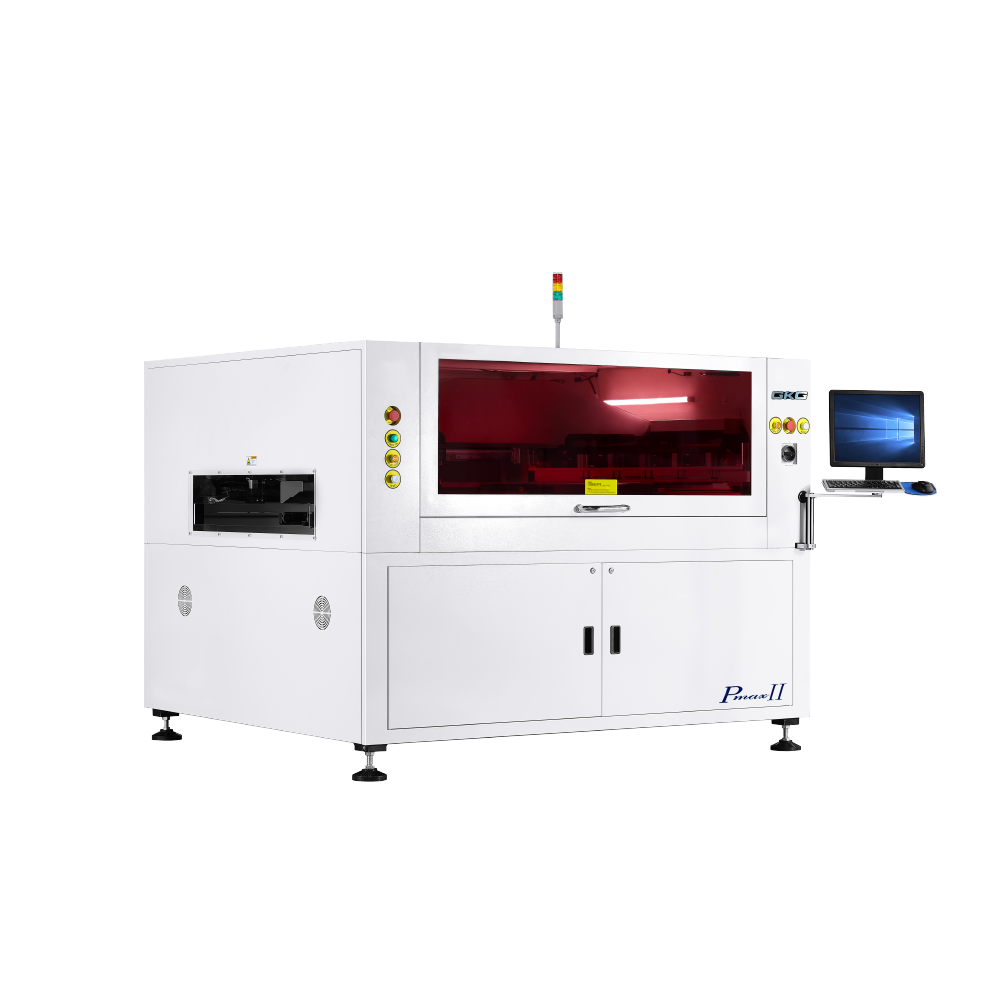

P-Max II
- High adaptability steel mesh frame clamping system
- Adjustable stepping motor-programmable & floating print-heads
- 2D solder paste print quality inspection and analysis system
- All new image and optical system.
- Cleaning system equipped with three cleaning methods: drying cleaning, wet cleaning, vacuum which can be combined to use.
- GKG special jacking platform adjustment which is stable and easy to adjust.
| Maximum Board Size | 1200 mm x 800 mm |
| Minimum Board Size | 100mm x 65 mm |
| Board Thickness | 0.4~10 mm |
| Maximum Board Weight | 10kg |
| Board Edge Clearance | 4.5mm |
| Board Height | 23mm |
| Transport Height | 900 ± 40mm |
| Transport Speed | Sectional Control. 1500mm/s (max) |
| Board Clamp | Retractable top clamp, motor controlled side clamp |
| Support System | Magnetic support pins, blocks, vacuum suction |
