ZSW

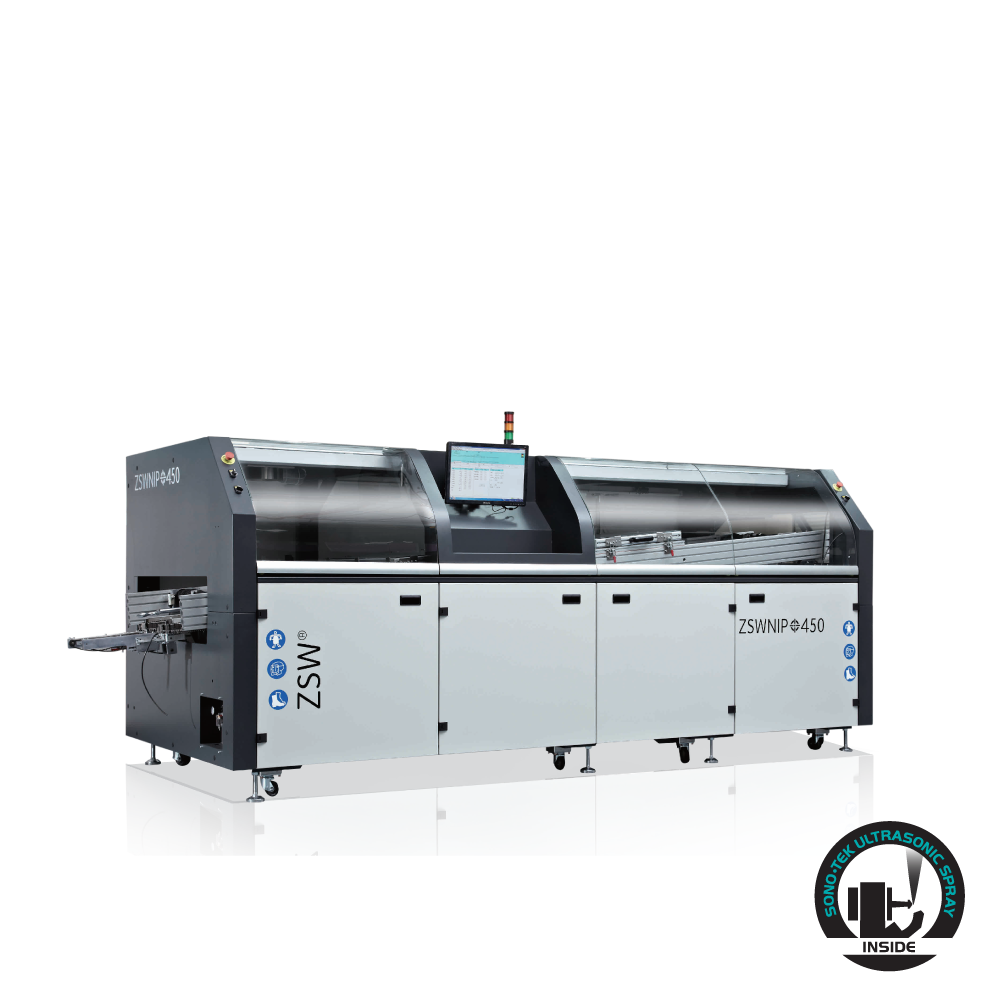

NIP-350/510/610
- Lead-free wave soldering
- Fluxing, preheating and soldering
- High-temperature resistant preheating elements
- Cost-effective soldering solution
- Full flux spraying
- Upgradable to selective spray fluxing

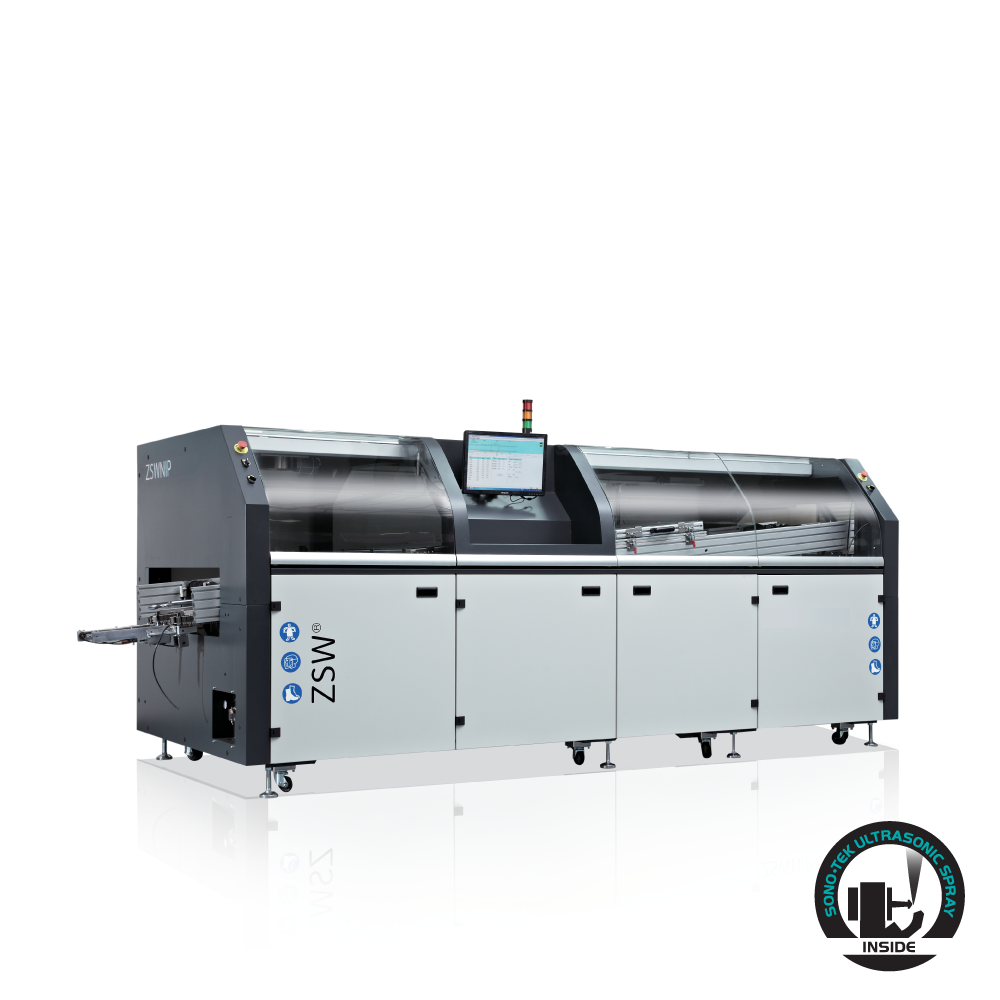

- Upgradable to Sono-Tek ultrasonic spray fluxer (Z-Sonic)
- Nitrogen system is also available: NIP-350N/510N/610N
| PCB width range | 100 - 350 mm / 510mm / 610mm |
| Preheating zones | 3 Bottom |
| Preheating temperature | Room temp. - 240°C |
| Preheating zone length | 1,800 mm |
| Preheating temp. control | PID + SSR |
| Conveyor height (Entrance) | 750 ± 20 mm |
| Conveyor inclination | 5° - 6° |
| Flux flow | 10-60 mL/min |
| Solder wave control | Mechanical pump |
