Sonic

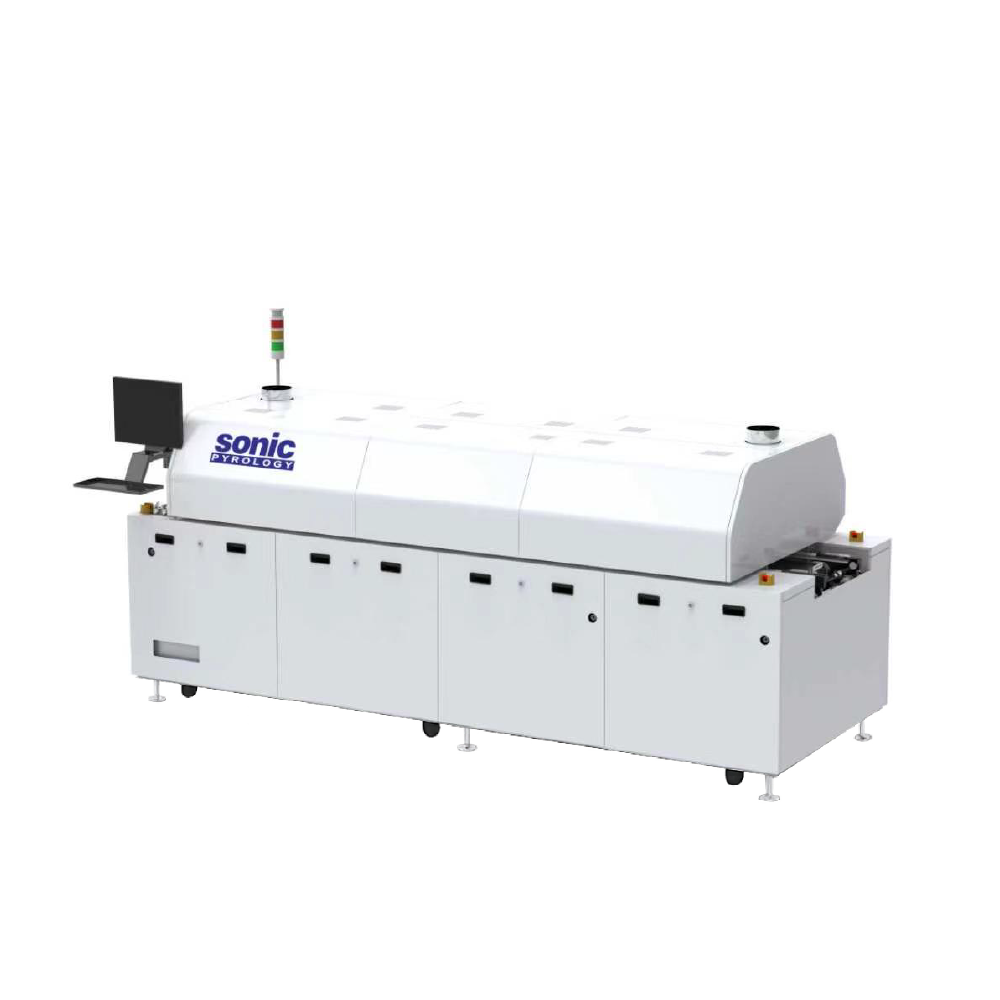

HV-902N/1202N
- IR + hot air vacuum reflow oven
- The new-generation hybrid vacuum reflow oven
- Clean environment specification (10,000 class)
- Improved yield and less rework
- Higher thermal efficiency
- Suitable for ultra-thin plates
- More suitable for high-density and complex processes
| Dimensions | L4,500 x W1,500 x H1,650 mm / L6,000 x W1,500 x H1,650 mm |
| No. of heating zone | Top 8, bottom 8 / Top 11, bottom 11 |
| No. of vacuum zone | 1 |
| No. of cooling zone | 2 |
| Effective heating length | 2,600 mm / 3,575 mm (heating zone) + 500 mm (vacuum zone) |
| Max. product size | 330 x 330 mm |
| Clearance | Top 20 mm, bottom 20 mm |
