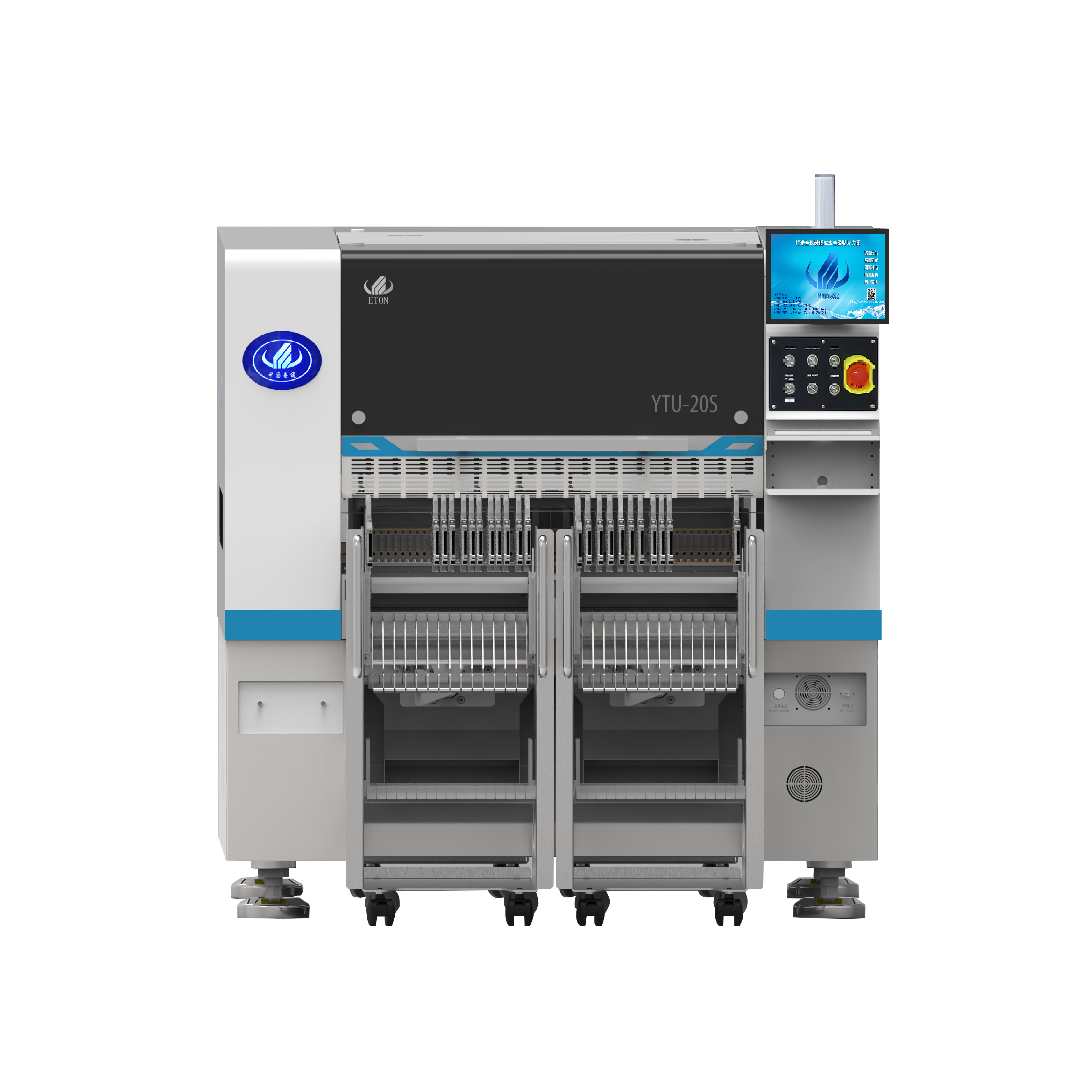

ETON YTU-20S
- High-performance SMT pick-and-place solution designed for NPI, high-mix and scalable production
- High-speed placement up to 80,000 CPH
- 20 independent spindles with dual gantry for enhanced placement productivity
- Dual fiducial recognition for accurate PCB alignment and positional compensation
- Advanced On-the-Fly vision supporting high-speed and consistent placement accuracy
- Independent vacuum monitoring for improved component pickup and placement reliability
- Wide component capability from 0603 Metric / 0201 Imperial to 15 × 15 mm
- Single-lane configuration supporting PCB sizes up to 500 × 450 mm
- Efficient setup & changeover with offline programming and mobile feeder options
| Dimension | 1,480 x 2,065 x 1,484 mm |
| Weight | Approx. 2,200 kg |
| Power Supply | Single phase, 220V AC, 50Hz |
| No. of Gantry & Spindle | Dual gantry with 20 spindles |
| No. of Lane | Single lane |
| Maximum PCB Size (LxW) | 500 x 300 mm (2PCBs) ; 500 x 450 mm (1 PCB) |
| minimum PCB Size (LxW) | 50 x 50 mm |
| Mounting Speed | 80,000 CPH |
| Vision System | Fiducial camera x 2 sets; On-The-Fly vision camera x 2 sets |
| Component Size Range | 0603 (Metric) / 0201 (Imperial) - 15 x 15 mm |
| Mounting Repeatability | Chip ± 0.03 mm ; QFP ± 0.025 mm , CPK > 1.33 (3σ) |
