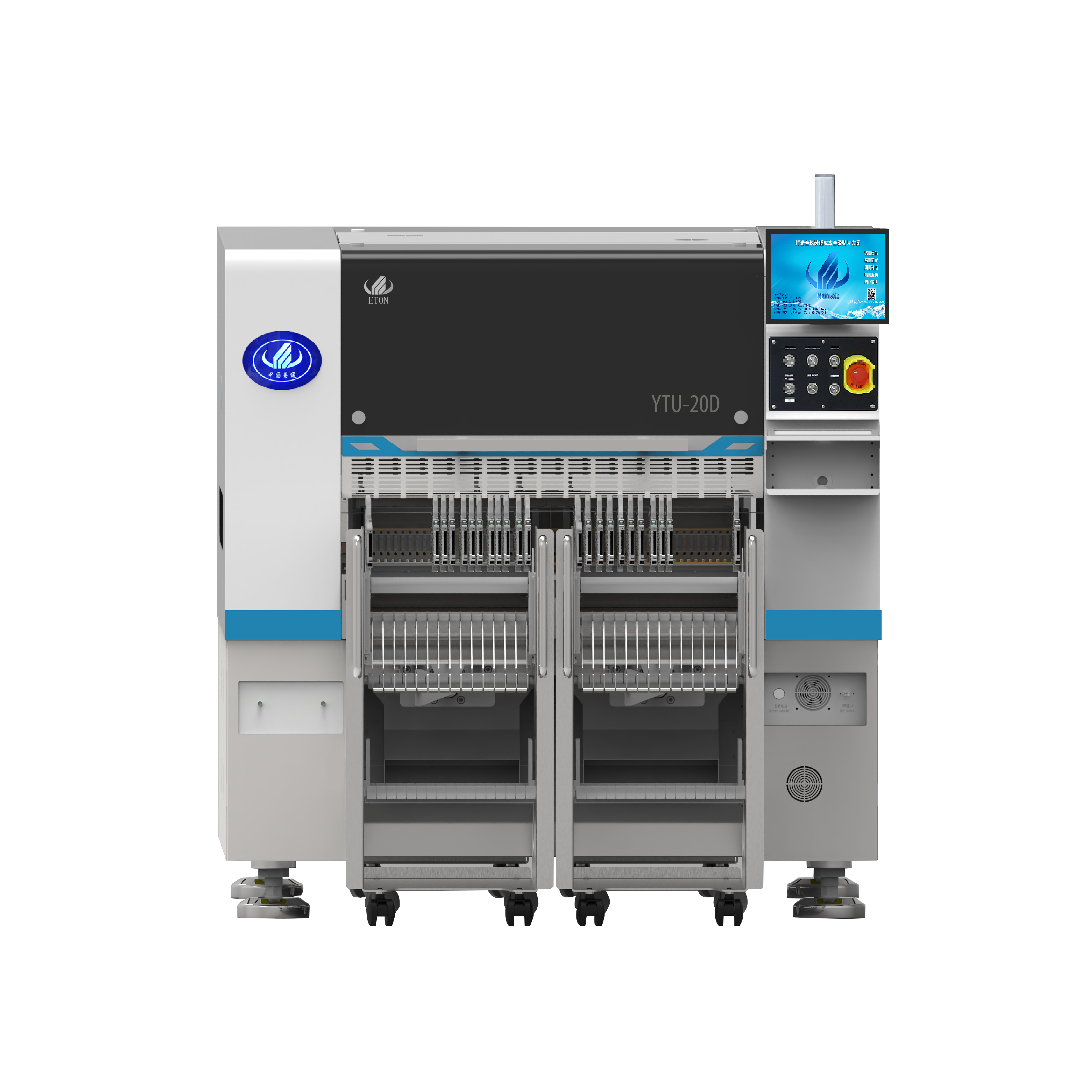

ETON YTU-20D
- High-throughput dual-lane SMT pick-and-place Solution for demanding production environments
- High-speed placement up to 80,000 CPH
- 20 independent spindles with dual-gantry configuration for efficient production
- Dual-lane production supporting flexible PCB handling and improved line utilization
- Advanced vision system for accurate alignment and consistent component placement
- Independent vacuum monitoring for enhanced placement reliability
- Wide Component capability from 0603 Metric / 0201 Imperial to 15 × 15 mm
- Flexible PCB handling supporting
- Ideal for high-mix & high-volume production with efficient setup and changeover
| Dimension | 1,480 x 2,065 x 1,484 mm |
| Weight | Approx. 2,200 kg |
| Power Supply | Single phase, 220V AC, 50Hz |
| No. of Gantry & Spindle | Dual gantry with 20 spindles |
| No. of Lane | Dual lane |
| Maximum PCB Size (LxW) | 500 x 300 mm (2PCBs) ; 500 x 450 mm (1 PCB) |
| minimum PCB Size (LxW) | 50 x 50 mm |
| Mounting Speed | 80,000 CPH |
| Vision System | Fiducial camera x 2 sets; On-The-Fly vision camera x 2 sets |
| Component Size Range | 0603 (Metric) / 0201 (Imperial) - 15 x 15 mm |
| Mounting Repeatability | Chip ± 0.03 mm ; QFP ± 0.025 mm , CPK > 1.33 (3σ) |
