Unicomp

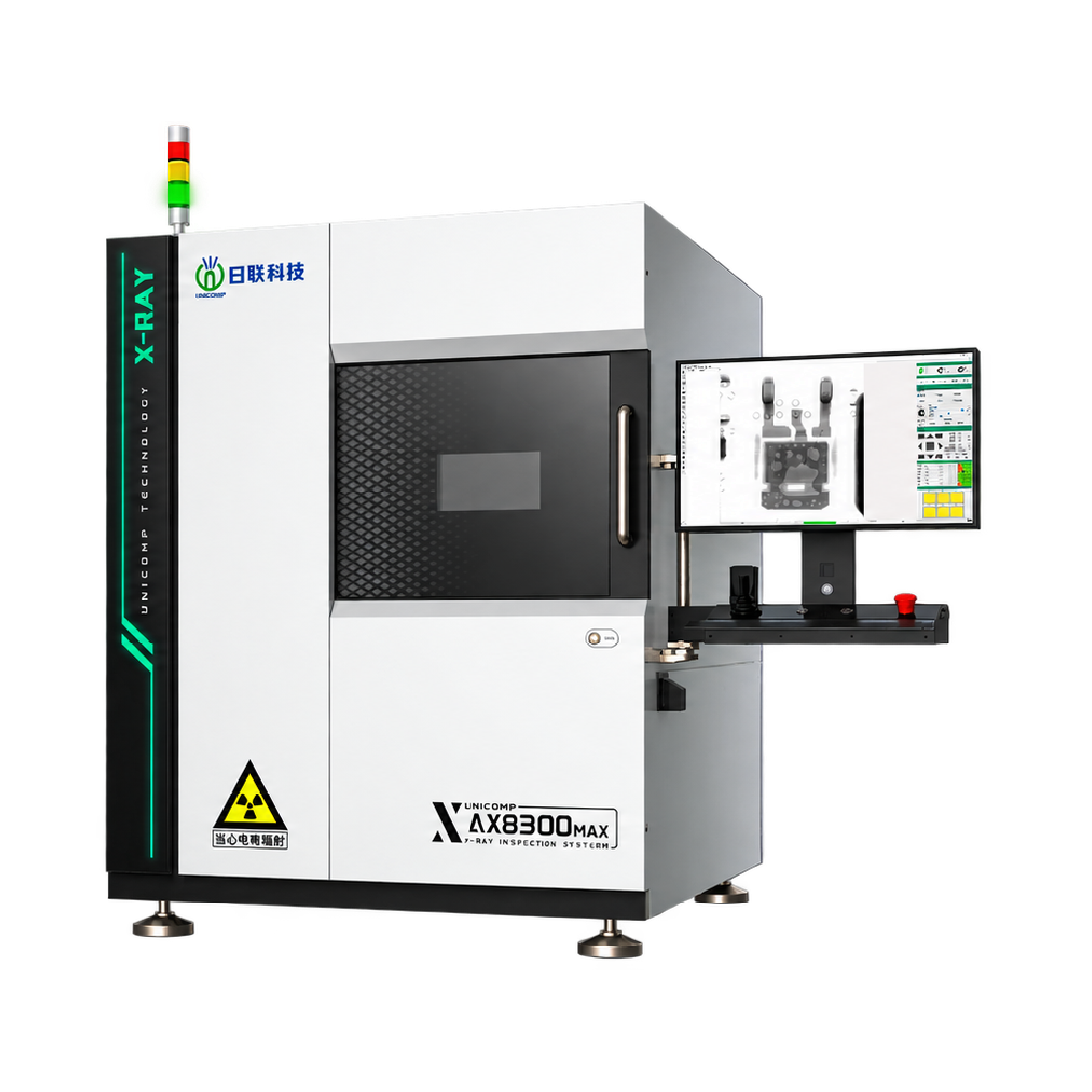

AX-8300MAX
- Stand-alone X-ray inspection machine
- Easily respond to comprehensive and multi-angle inspection needs of different users
- Large inspection table for flexible product placement and accurate inspection
- 27" 4K high-resolution display for clear X-ray image visualization
- Accurate control, CNC programming, automatic positioning and inspection
- 360° horizontal rotation inspection for multi-angle internal observation
- Automatic calculation, image measurement and diverse measuring tools
- Fingerprint access management system for controlled operation
- Real-time monitoring of radiation and safety status
- Application: Semiconductor, SMT, DIP, electronic component testing, covering IC, BGA, CSP, LED, batteries, automotive parts, aluminum die-casting, photovoltaic products and special industries
| Dimensions: L x W x H | 1,280 x 1,500 x 1,700 mm |
| X-ray tube type | Sealed |
| Voltage | 110 kV |
| Pixel matrix | 1536 x 1536 pixel |
| Pixel size | 84 µm |
| Focus spot size | 5 µm |
| Geometric magnification | 47.7x |
| Motion control system | Joystick, mouse & keyboard |
| Detection area | 129 x 129 mm |
| Maximum detection size | 545 mm |
| Tilt rotation | Detector unilateral tilt maximum 60° |
