Unicomp

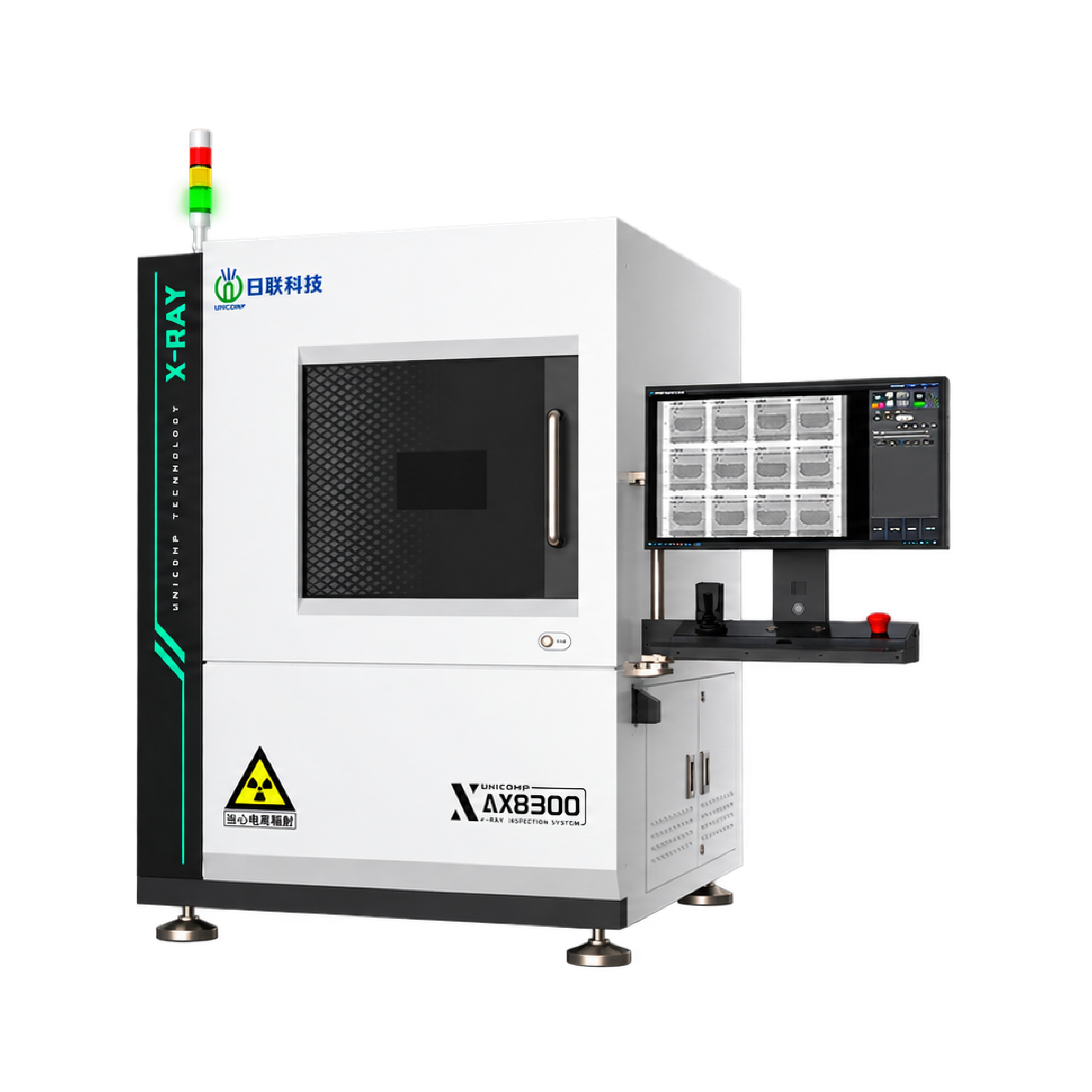

AX-8300
- Stand-alone X-ray inspection machine
- Easily respond to the comprehensive and multi-angle inspection needs of different users
- High-definition X-ray source paired with high-sensitivity flat panel detector
- Large inspection table for flexible product placement and inspection
- 27" 4K high-definition display for clear inspection image visualization
- Accurate control, CNC programming and automatic positioning
- High-precision CNC automatic inspection for efficient and repeatable inspection
- Fingerprint access management system for controlled operation
- Real-time monitoring of radiation safety status
- Application: Semiconductor, SMT, DIP, electronic component inspection, covering IC, BGA, CSP, flip chip, PCBA, LED, sensors, MOS, lithium batteries, automotive parts, aluminum die-casting, photovoltaic products and special industries
| Dimensions: L x W x H | 1,200 x 1,285 x 1,700 mm |
| X-ray tube type | Sealed |
| Motion control system | Joystick, mouse & keyboard |
| Detection area | 129 x 129 mm |
| Tilt rotation | Detector unilateral tilt maximum 50° |
| Voltage | 110 kV |
| Pixel matrix | 1536 x 1536 pixel |
| Pixel size | 84 µm |
| Focus spot size | 5 µm |
| Geometric magnification | 49.8 x |
| Maximum detection size | 420 x 440 mm |
| XYZ-axis travel distance | tube Z-axis 145, detector Z-axis 350 |
