KED

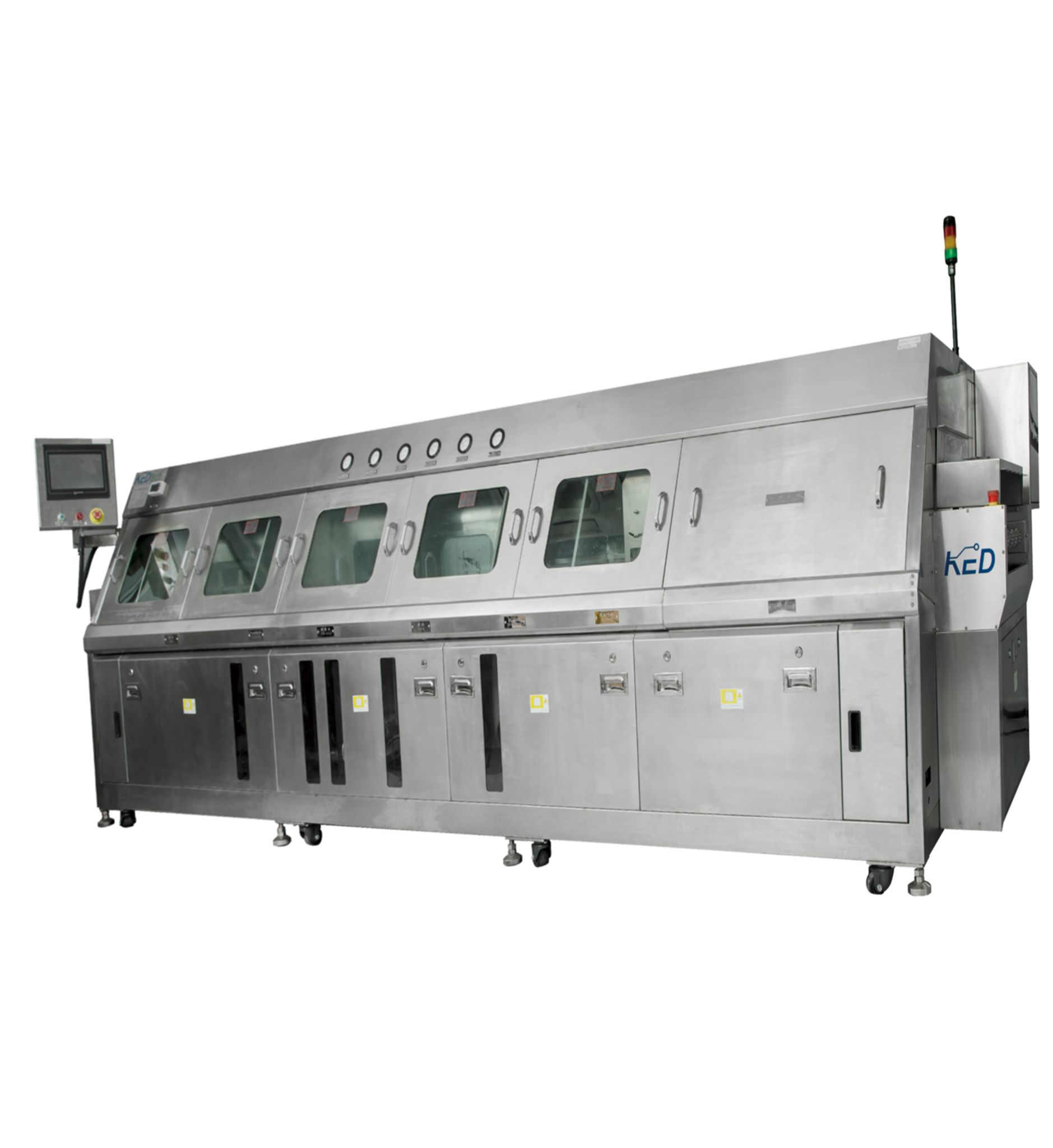

S-680
- In-line PCBA cleaning machine
- Suitable for high capacity flux residue cleaning for PCB and low standoff components like BGA, QFN, CSP, BTC and high power IGBT.
- Excellent cleaning effect, the effective removal of rosin, water soluble flux, disposable flux and other organic, inorganic pollutants
- Excellent chemical isolation, low running costs
- Stainless steel cabinet (SUS304) is anti-corrosion, and the cleaning agent can be heated to a higher temperature in order to get a wider process window.
- Fast drying function. High pressure hot air knives are specially designed to dry water fast and thoroughly and avoid water mark afrer drying.
| Machine Dimension | L6800 x W1870 x H1956 mm |
| Machine Weight | 3600 kg |
| Maximum Cleaning Size | L400 x W600 × H100 mm |
| Mesh Speed | 10 cm/min - 150 cm/min |
| Mesh Size | Width: 600 mm, Height: 900 (-20/+50) mm |
| DI Water | DIW: 5-15L/min, pressure: >0.3MPa |
| Cleaning Tank | 290L |
| Cleaning Pump Power | 2.2kW + 7.5 kW +7.5kW |
| Cleaning Filter | 10μm |
| Rinsing tank | Pre-Rinse: 60L, Rinse 1: 150L, Rinse 2: 60L |
