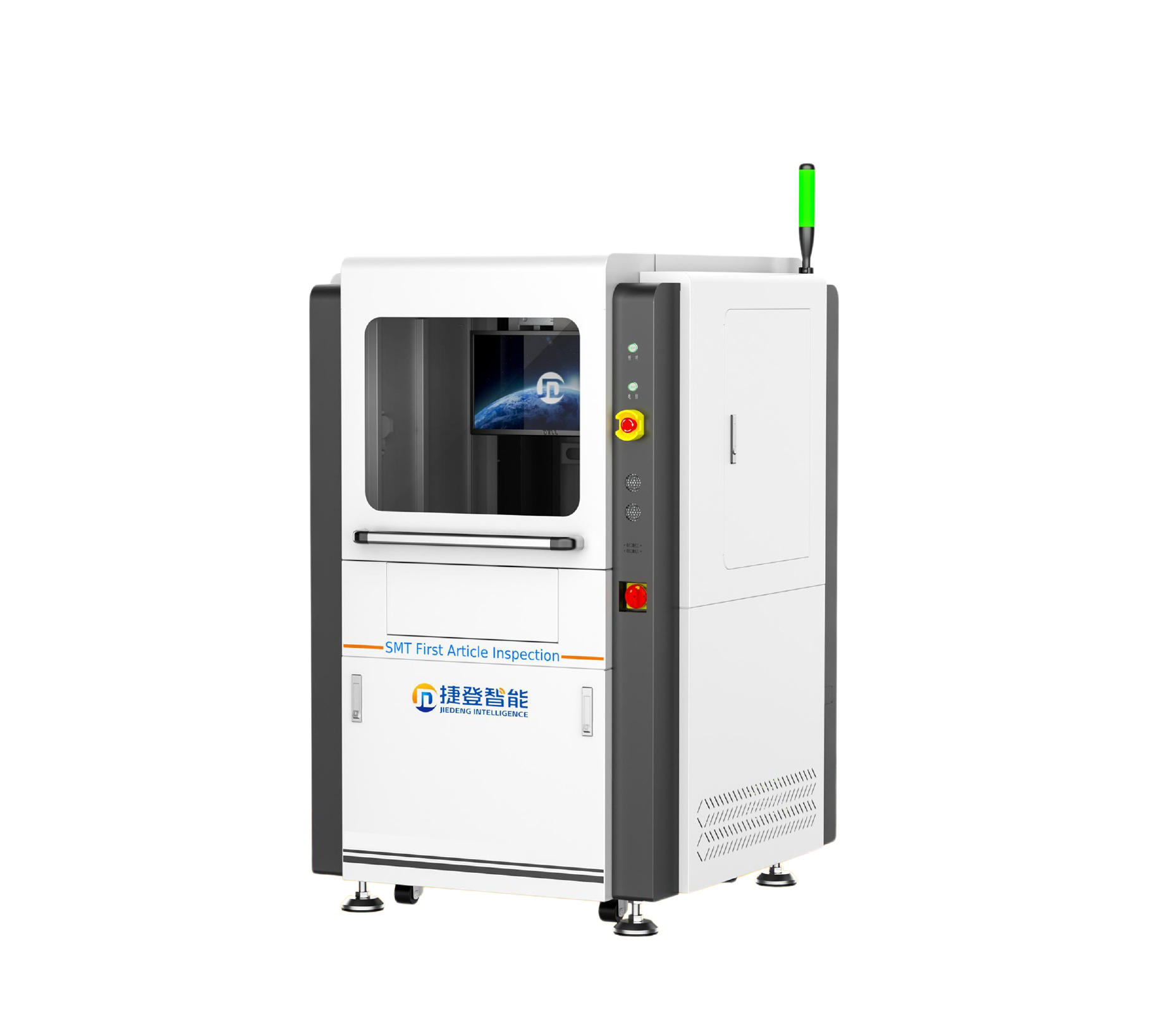

JD-FAI998

First article inspection (FAI) machine
Designed to verify first assembled PCBA by combining place accuracy checks, assembly vlidation, and process confirmation before mass production
Built for fast line stup and error prevention, the system detects component and polarity to prevent defect replication and reduce line downtime
High accuracy and stable inspection architecture ensures consistent and repeatable results without reliance on manual judgement
Flexible and production ready design supports a wide range of PCBA sizes, thickness and carrier configurations, enabling seamless integration into different SMT lines.

Dimension	L1,150 x W1,300 x H1,800 mm / L1,200 x W1,600 x H1,800 mm
Weight	700 kg / 850 kg
PCB Test Size	50 x 50 - 450 x 400 mm / 50 x 50 - 650 x 550 mm
PCB Thickness	0.4 - 5 mm
Maximum Component Height	Top 28 mm, bottom 50 mm
Smallest Measurable Component	01005
Inspection Speed	1 second / part
Repeatability Accuracy	± 0.02 mm
Measurement Accuracy	0.05%
Visual System	12 MP Industrial camera + telecentric lens + ring light source
