JN-X7L

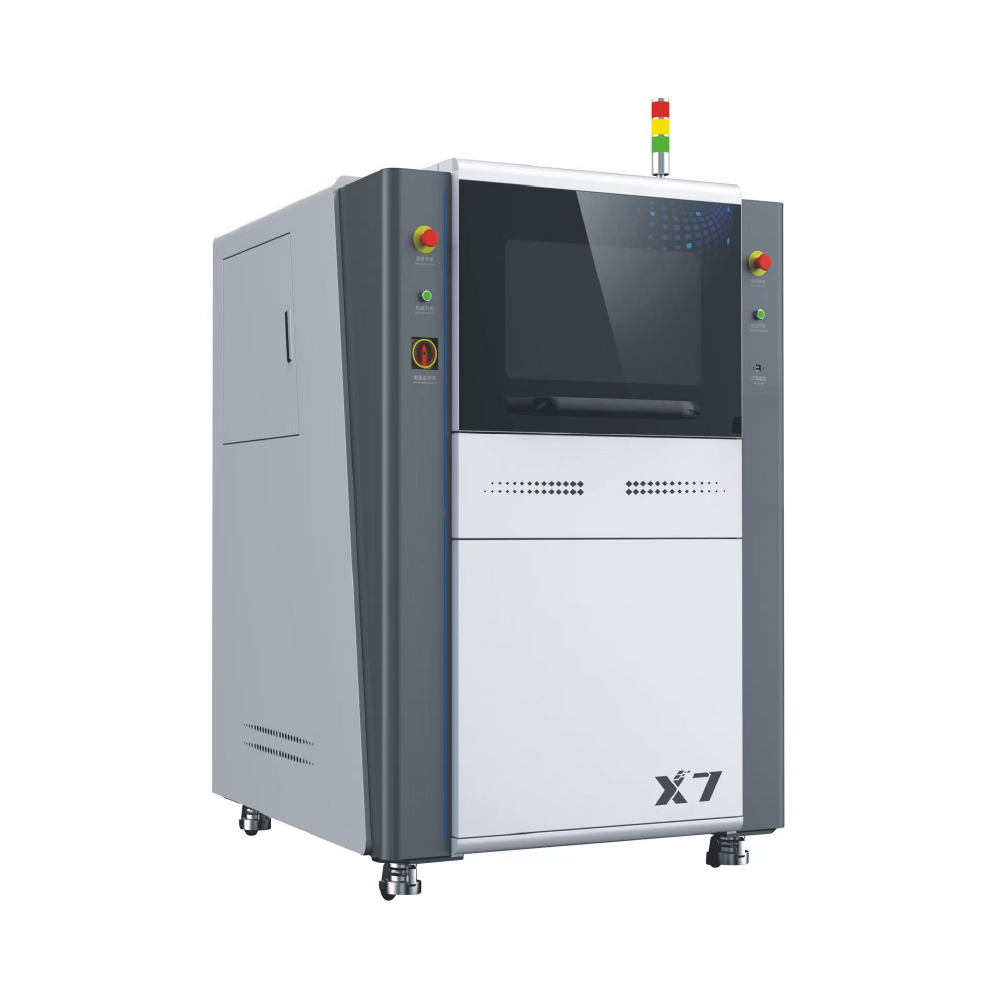

- First article inspection (FAI) machine
- An automatic inspection device used to verify the quality of first PCB before mass production begins.
- Equipped with automatic function such as measurement of component on adhesive board, mode switching, frequency adjustment, result evaluation.
- Silkscreen polarity inspection. Automatically determine component polarity using CCD vision-based AOI algorithm.
- Z-axis robotic arm adjust probe spacing based on component size and measures automatically.
- Detection display content: component size, polarity, silkscreen text comparison, offset, wrong part, reverse, missing part and multiple parts.
- Generates comprehensive inspection reports automatically, available in your choice of excel or PDF formats.
| Dimension | L1,150 x W1,450 x H1,650 mm |
| Weight | 600 kg |
| PCB test size | X: 510mm, Y: 460mm |
| Maximum part height | 15mm (Calculated from the substrate) |
| Test speed | 1 - 2 seconds/part |
| Test substrate type | Adhesive board, red adhesive board, solder paste board |
| Test accuracy | Resolution is 4-1/2 digits and the basic accuracy of measurement is 0.1% |
| Test frequency | 20Hz to 300kHz |
| Part display area | 12mm x 12mm |
| Detection display content | Component size, component polarity, silk screen text comparison, offset, wrong part, reverse, missing part, multiple parts |
