KED

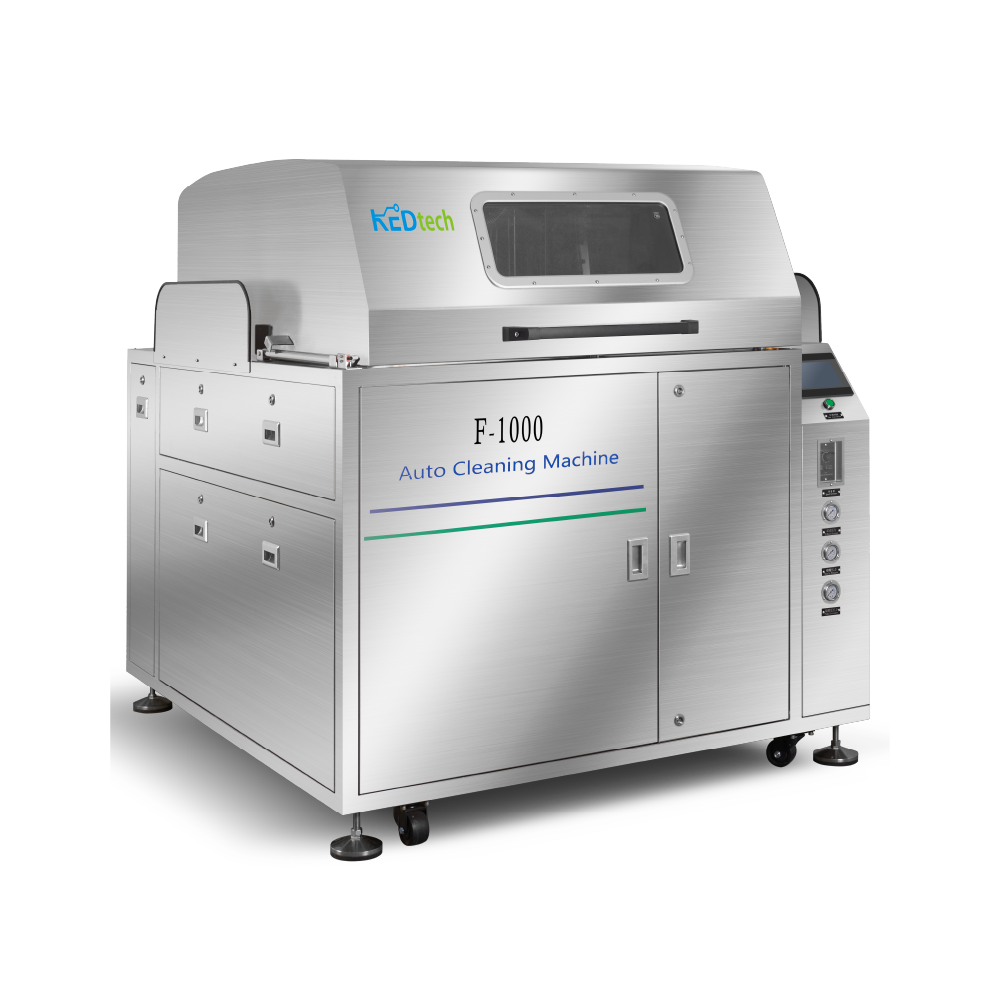

F-1000
- Rotary air spraying mechanical parts cleaning machine
- 3 in 1 cleaning, rinsing and drying
- Open loop / closed loop / half open loop available for rinsing process
- Adjustable software to optimize cleaning process
| Dimension | L1520 x W1660 x H1630 mm |
| Weight | 600 kg |
| Cleaning basket size | Dia 1040 x H620 mm |
| Cleaning Tank | Max: 100L, Optimal: 65L |
| Rinsing Tank | Max: 53L, Optimal: 36L |
| Cleaning and Rinsing Method | 360° Rotary spraying (SIA) |
| Rinse Method | Close, open or half open loop |
| DI Water supply | Pressure: ≥ 0.3MPa; Flow rate: 30 - 60 L/min |
| Drying method | High pressure hot air dry |
