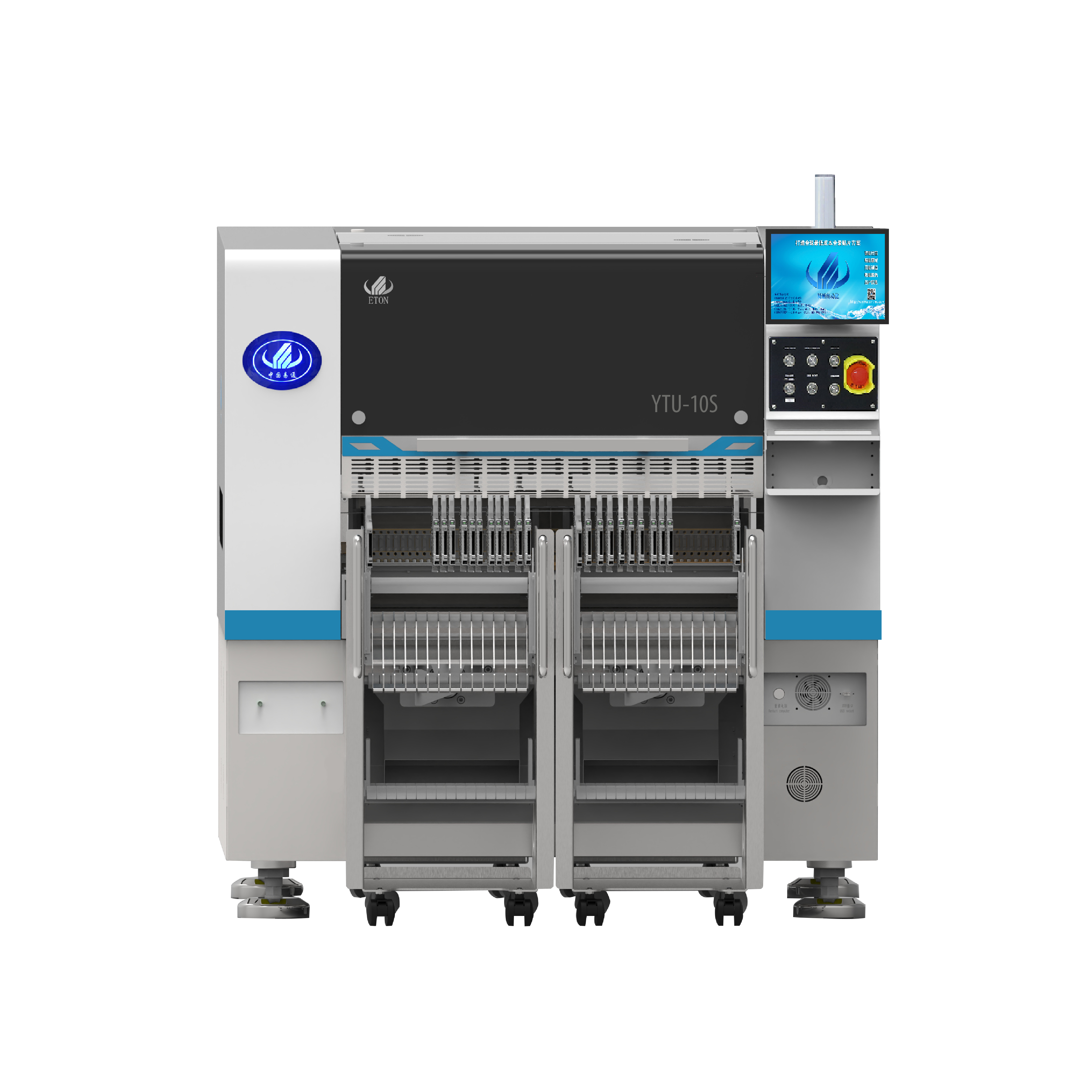

YTU-10S
- Pick-and Place Mounter
- Flexible & cost-effective SMT pick-and-place solution for NPI, high-mix assembly and scalable production
- High-speed placement up to 48,000 CPH
- 10 independent spindles for efficient component placement
- Advanced On-the-Fly vision for accurate and consistent placement
- Wide component capability from 0603 Metric / 0201 Imperial to 15 × 15 mm
- Flexible feeding options supporting tape, stick, tray and loose components
- Efficient setup & changeover with offline programming and flexible feeder configurations
- Single-lane platform supporting PCB sizes up to 500 × 450 mm
- With the optional Fixed Precision Camera, the system supports component sizes up to 55 × 55 mm, including QFP, QFN, and BGA packages.
- NPI-ready design for prototype, small-batch and high-mix production
| Dimension | 1,480 x 1,842 x 1,484 mm |
| Weight | Approx. 1,850 kg |
| Power Supply | Single phase, 220V AC, 50Hz |
| No. of Gantry & Spindle | Single gantry with 10 spindle |
| No. of Lane | Single lane |
| Maximum PCB Size (LxW) | 500 x 450 mm |
| minimum PCB Size (LxW) | 50 x 50 mm |
| Mounting Speed | 48,000 CPH |
| Vision System | Fiducial camera x 2 sets; On-The-Fly vision camera x 1 sets |
| Component Size Range | 0603 (Metric) / 0201 (Imperial) - 15 x 15 mm |
| Mounting Repeatability | Chip ± 0.03 mm ; QFP ± 0.025 mm , CPK > 1.33 (3σ) |
